Foshan Xendoll Intelligent Technology co., Ltd.


6 in 1 Classic mini mirco machine tool Kit

Model: W400MA

Youth Activity Center, School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science and Technology Creation, DIY hobbyist.

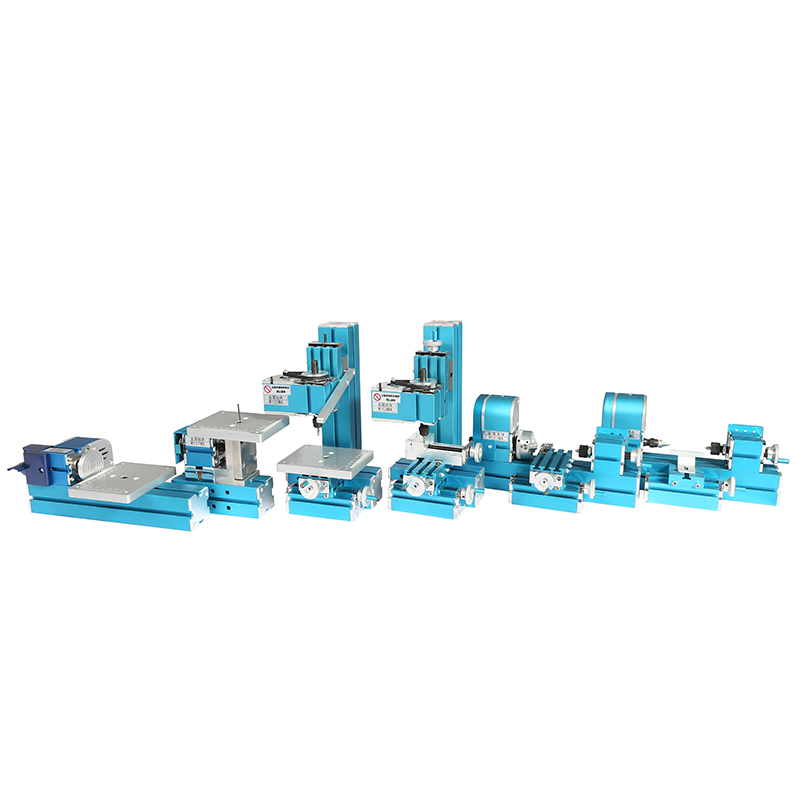

This classic kit can be assembled into jigsaw, lathe, woodturning lathe, drilling machine, milling machine, sanding machine. And realize the functions of those machines. But it is only assembled in one of 6 kind machines at the same time; for there are only ONE motor and headstock are offered.

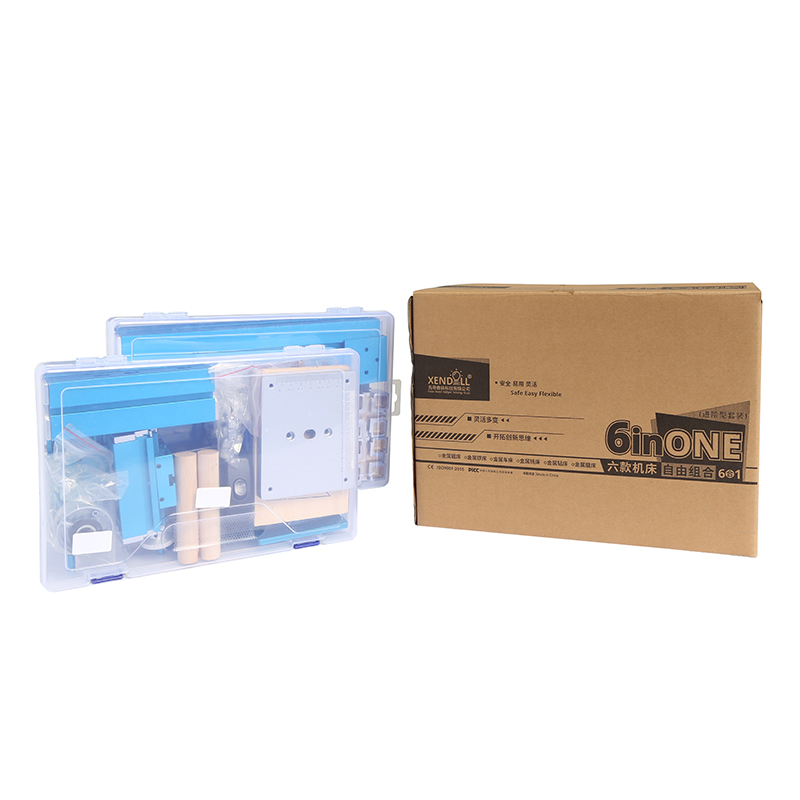

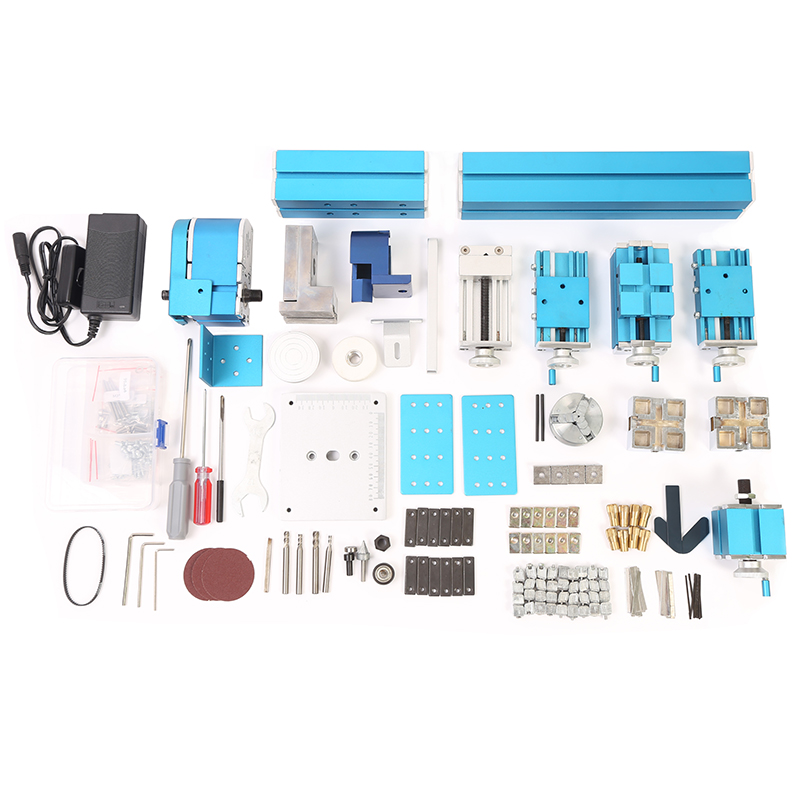

All the parts and accessories are stored in two containers, which save your space get more value. Enjoy your DIY moment.

  • Picture
  • Parameter
  • Video
  • Inquiry

    Applications:

    Youth Activity Center, School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science and Technology Creation, DIY hobbyist.

    This classic kit can be assembled into jigsaw, lathe, woodturning lathe, drilling machine, milling machine, sanding machine. And realize the functions of those machines. But it is only assembled in one of 6 kind machines at the same time; for there are only ONE motor and headstock are offered.

    All the parts and accessories are stored in two containers, which save your space get more value. Enjoy your DIY moment.


    Description:

    XENDOLL power tools: It is driven by 12V safe direct current transformer. It is helpful for improving manual ability and independent thinking, thus effectively improving intelligence of children. So as to be a good didactical tool for children. It is also an ideal tool for DIY hobbyist and modelmaker to make various craft. Wear goggles when using. Children need to be guided by adults.

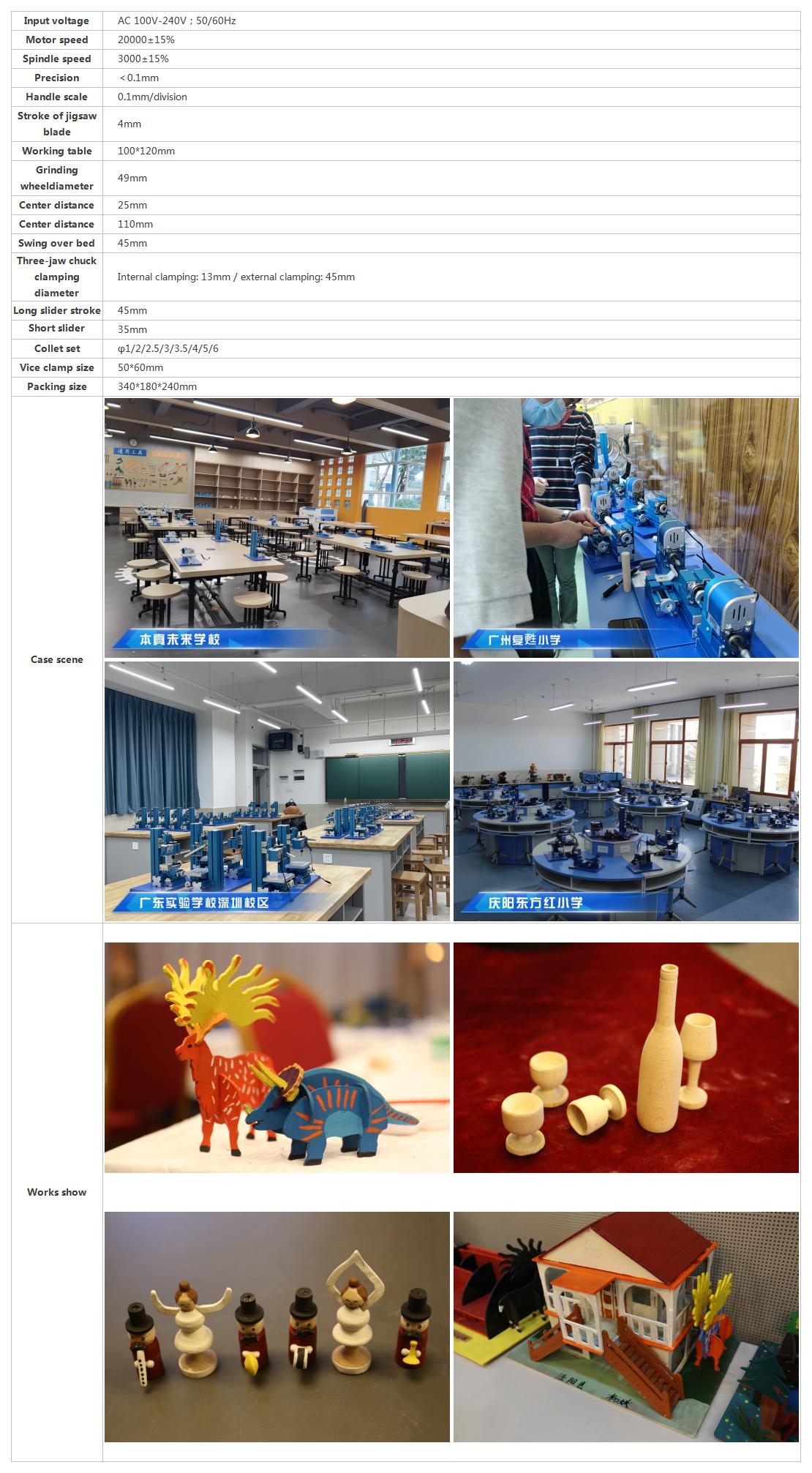

    Parameter:

    Input voltage: AC100V~240V 50/60HZ

    Output voltage : DC12V 2A

    Motor rated power: 24W

    Motor speed: High speed motor 20000r/min±15%

    Spindle speed: high speed motor 3000r/min±15%

    Spindle jump: <0.1mm

    Handle scale: 0.1mm/division

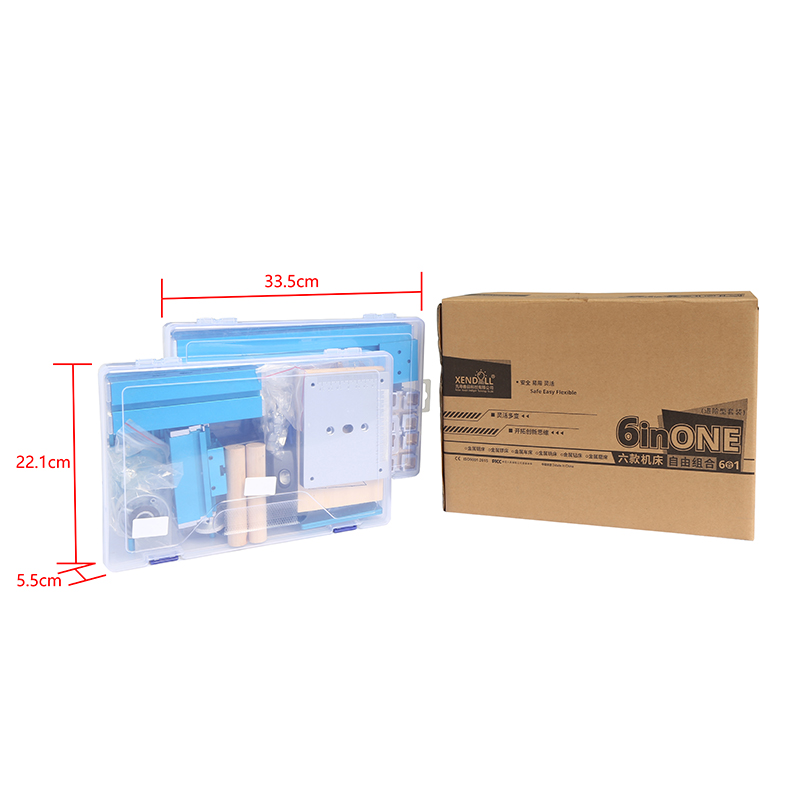

    Packing size: 340*180*240mm

    Weight: 4.59/5kg


    Jigsaw machine:

    Jigsaw blade:4mm

    Working table: 100*120mm

    Size: 148x50x124mm


    Woodturning machine:

    Center height: 25mm

    Center distance: 110mm

    Swing over bed: 50mm

    Size:278*100*124mm


    Milling machine:

    Long slider stroke: 45mm

    Short slider stroke: 35mm

    Collet set (6-piece): Φ1/Φ2/ Φ2.5/Φ3/Φ3.5/Φ4/Φ5/Φ6

    Milling cutter: Φ2/Φ3/Φ5/Φ6

    Size: 278x100x150mm


    Drilling machine:

    Long slider stroke: 45mm

    Short slider stroke: 35mm

    Collet set (6-piece): Φ1、Φ2、Φ2.5、Φ3、Φ3.5、Φ4、Φ5、Φ6

    Twist cutter: Φ2、Φ3

    Size: 148x150x278mm


    Sanding machine:

    Center height: 25mm

    Rotary table:49mm

    Size: 148x150x278mm


    Lathe Machine:

    Center height: 25mm

    Center distance: 110mm

    Swing over bed: 50mm

    Maximum processing diameter: 13mm positive claw, 45mm reverse claw

    Three-jaw chuck clamping diameter: 13mm claw, 45mm reverse claw

    Size: 278x100x150mm


    Processing ability: It can process wood, plastic and soft metals (pure copper and pure aluminum).
