Keyword:Small machining center, Desktop machining center,Small five axis machining center, Desktop teaching machining center, Pilot five axis linkage machining center

Have you ever been frustrated by brilliant ideas that couldn’t be realized? Have you been deterred by the high barriers, large space requirements, and complex operations of traditional large-scale machine tools? Have you ever longed to quickly obtain a precise, perfect metal part right in your R&D lab, laboratory, or even on your office desk?

All these imaginings have now become reality. The desktop machining center is revolutionizing manufacturing for individuals, education, and light production by condensing high-end manufacturing capabilities from vast factory floors onto your desktop in an unprecedented way.

Compact in size, the desktop machining center requires only the space of a standard office desk. It is easy to use, running on a standard 220V power supply, and operates intelligently with a graphical interface, enabling even beginners to get started quickly. Like its larger industrial counterparts, it can perform precision machining such as milling, drilling, and engraving on various materials including steel, aluminum, copper, and engineering plastics, automatically executing complex processes based on digital instructions.

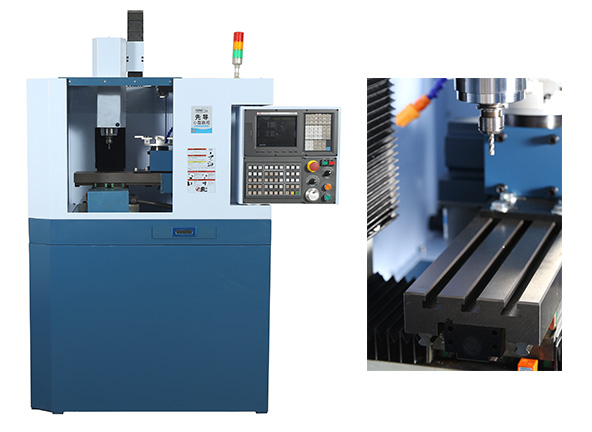

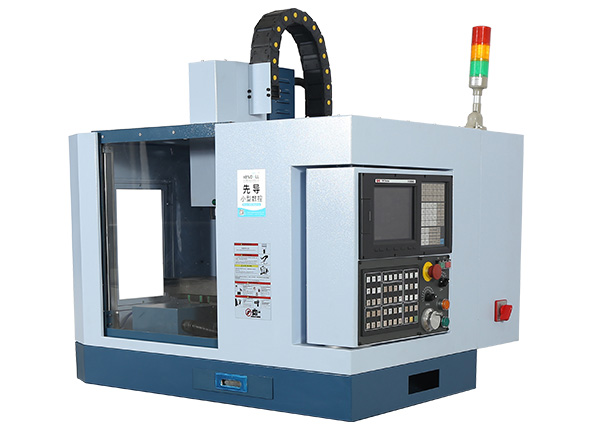

(I) Miniature CNC Machining Center   VMC220

Technical Parameters:

Worktable: 400×140mm

X-axis Travel:220mm

Y-axis Travel:120mm

Z-axis Travel: 200mm

Rapid Traverse Speed: X/Y-axis 6000mm/min; Z-axis 4000mm/min

Spindle Speed:300–24,000 rpm

Spindle Motor Power: 1.5 kW

CNC System: Industrial-grade CNC system

Electronic Handwheel: 5-axis three-gear electronic handwheel

Power Supply: AC220V/50Hz

Machine Base:Optional

Net Weight/Gross Weight:160 kg / 180 kg

Machine Dimensions: 1359×930×1064mm; 1359×930×1740mm (with base)

Product Features:

1) Operates on 220V voltage, with a small footprint and low power consumption. Combines transparent acrylic and sheet metal for enhanced safety during observation while ensuring structural stability and full enclosure.

2) Equipped with a 4-station automatic tool changer, expandable to 6 stations, using 0.6 MPa air pressure.

3) Features an industrial-grade CNC system compatible with internationally standard programs, with fault self-diagnosis and alarm functions, and power-off memory retention.

4) High-precision industrial-grade spindle with ISO20 taper, spindle speed ranging from 300 to 24,000 rpm.

Choosing a desktop machining center means:

For enterprises, it is a strategic tool to shorten R&D cycles, protect intellectual property, and enable flexible production.

For educators, it is the most dynamic classroom for training the next generation of engineers and creators.   For individual makers, it is the key to breaking down the final barrier between the digital and physical worlds.

The future of creation is now on your desktop.
