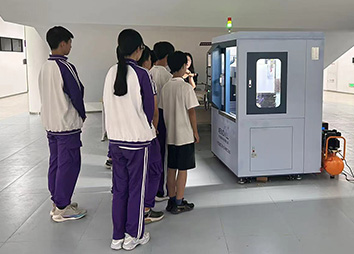

An educational small 5-axis machining center is equipment specifically designed for teaching and skill training. It allows learners to master advanced CNC technology in a safe and cost-controlled environment.

A 5-axis machining center is a type of CNC machine tool capable of simultaneously controlling five coordinate axes , thereby machining workpieces with complex spatial surfaces.

Compared to traditional 3-axis machining, 5-axis machining brings revolutionary improvements:

Complete Complex Machining in a Single Setup

Biggest Advantage: Only a single setup is needed to machine five sides of a workpiece (except the bottom) and complex spatial surfaces. This avoids errors caused by multiple setups, greatly improving machining accuracy and positional tolerance.

Improved Machining Efficiency

By tilting the tool, shorter tools can be used to machine deep cavities or side walls, reducing tool overhang. This allows for larger cutting depths, reduces vibration, and increases machining efficiency.

By optimizing the tool angle, the tool's side cutting edges rather than the tip can be used for cutting, increasing cutting speed and extending tool life.

Improved Surface Quality

By continuously adjusting the relative angle between the tool and the workpiece, the tool can always maintain the optimal cutting position, resulting in better surface finish.

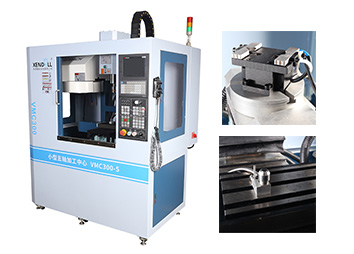

XENDOLL Small 5-Axis CNC Machining Cente VMC300-5

Technical Parameters:

Tool Clamping Range: 2-13mm

Worktable: 550×160mm

X-Axis Travel: 300mm

Y-Axis Travel: 175mm

Z-Axis Travel: 270mm

A-Axis Rotation: 360 degrees, harmonic drive reduction

Spindle Speed: 300 - 24,000 rpm

Spindle Motor Power: 1.5 kW

Feed Control: Servo Motor

Rapid Traverse Speed: 10,000 mm/min

Spindle Type: ISO20

Tool Magazine Capacity: 12-position umbrella-type tool magazine

Power Supply: AC220V / 50Hz

Net Weight: 660 kg

Machine Dimensions: 1395×1256×1913 mm

Product Features:

Operates on standard 220V voltage, has a small footprint, and low energy consumption. Uses a combination of transparent acrylic and sheet metal for a fully enclosed structure, enhancing observation safety while ensuring structural stability.

Equipped with a 12-position umbrella-type tool magazine, operating with 0.6 MPa air pressure.

Enhanced functionality offering 4-axis, configured with an industrial-grade CNC system compatible with internationally standard programs. Features include automatic fault detection and alarm, and power-off memory function.

The spindle is a high-precision industrial-grade spindle with an ISO20 taper and a speed range of 300-24,000 rpm.

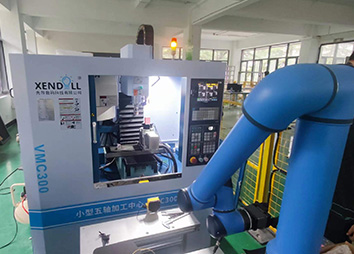

If your course goal is to allow students to gain a deep understanding of core advanced functions like 5-axis simultaneous machining and RTCP (Tool Center Point Management) and to lay a solid foundation for employment, then a fully-featured model closer to industrial standards (such as the VMC300) is the better choice. If the primary aim is to stimulate interest, provide basic普及 of CNC programming, or for maker space practices, then entry-level desktop machines (like the VMC220) hold the advantage due to their safety, lower cost, and ease of use.
